Model Number: GOTT-DCM-413

Brand: GOTT

C/O: Malaysia

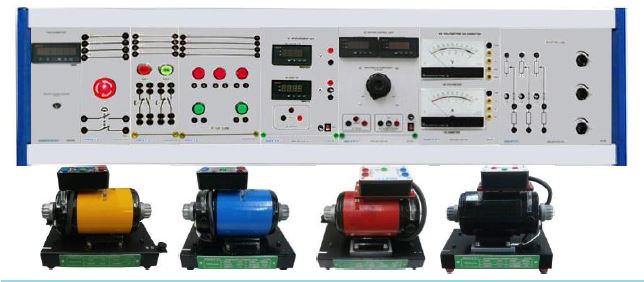

DESCRIPTION

The experimental panel system is used for the coherent teaching of the principal mechanical configuration and basic operating principles of the most important AC machines in teacher-oriented lessons and lectures to conduct the experimental groups.

 PRODUCT MODULES TACHOMETER

CODE 192-008

  • RPM Range: 0…9999rpm
  • Input: AC 240V

EMERGENCY SWITCH

CODE 191-007

  • Rated voltage : 240VAC
  • Emergency off button with pull-unlatching

PUSH BUTTON

 CODE 191-008

  • Rated voltage : 240VAC
  • Push Button x 2 units

PILOT LAMP

CODE 191-010

  • Pilot Lamp x 5 units
  • Input: 240VAC

DC MEASUREMENT UNIT

CODE 192-003

  • Voltmeter range: 0…500VDC
  • Ammeter range: 0…2A
  • Output: 250VDC
  • Input: AC 240V, 50Hz 1-Phase

DC MOTOR CONTROL UNIT

CODE 192-004

  • Output: 0…240VDC Fixed 250VDC
  • Input: AC 240V, 50Hz 1-Phase

DC VOLMETER & DC AMMETER

CODE 588-028

  • Measurement Mode : DC
  • Voltage Ranges : 5V,50V,250V,1000V
  • Current Ranges : 1A, 5A, 25A

RHEOSTAT

CODE 192-005

  • Protection Fuse 2A x 2 units
  • Excitation Resistor: 0~1kΩ
  • Armature Resistor: 0~100Ωs

DC COMPOUND MOTOR

CODE 159-001

  • Power: 240W
  • Voltage: 240VDC
  • Current: 1A
  • Speed: 1500rpm
  • Excitation Voltage: 240VDC
  • Excitation Current: 0.5A

 DC SEPARATELY EXCITED MOTOR

CODE 159-002

  • Power: 240W
  • Voltage: 240VDC
  • Current: 1.0A
  • Excitation
  • Voltage: 240VDC
  • Excitation Current: 1.0A
  • Speed: 1500rpm

DC SHUNT MOTOR

CODE 909-103

  • Power : 250 W
  • Voltage : 240 V
  • Current : 1.04 A
  • Speed : 1500 rpm
  • Excitation Voltage : 240 V
  • Excitation Current : 0.13

DC PERMANENT MAGNET MOTOR

CODE 612-003

  • A Power: 200W
  • Voltage: 240VDC
  • Current: 2A
  • Speed: 1500rpm

Manuals:

  • All manuals are written in English
  • Model Answer
  • Teaching Manuals

General Terms:

  • Accessories will be provided where applicable.
  • Manuals & Training will be provided where applicable.
  • Designs & Specifications are subject to change without notice.
  • We reserve the right to discontinue the manufacturing of any product.

Warranty: 2 Years
